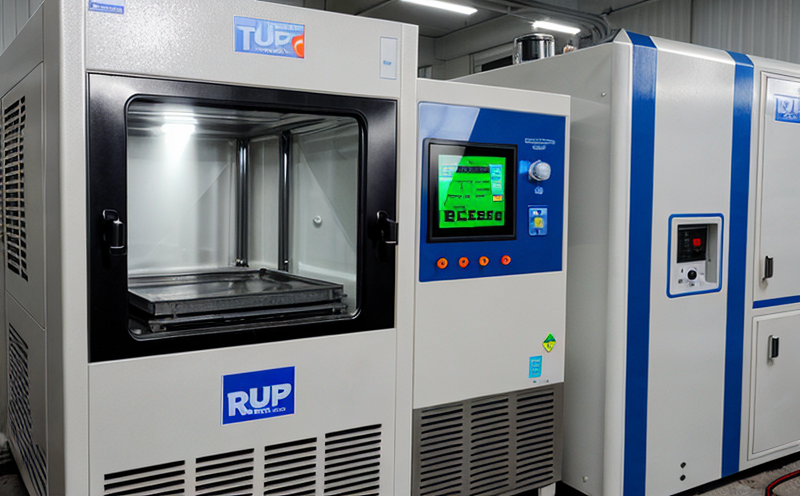

Thermal shock chambers are specialized testing equipment used to rapidly test materials resistance to extreme temperature fluctuations. These chambers can subject specimens to rapid changes in temperature, often in a matter of seconds or minutes, allowing for efficient evaluation of material properties under various conditions.
History and Development
The concept of thermal shock testing has been around for over a century, with early experiments involving dropping objects into water or oil baths at different temperatures. However, it wasnt until the mid-20th century that dedicated thermal shock chambers began to emerge. The development of these devices was driven by the growing demand for materials resistant to extreme temperature changes in various industries such as aerospace, automotive, and electronics.
Modern thermal shock chambers have become more sophisticated over time, incorporating advanced technologies like computerized control systems, precise temperature measurement, and automation capabilities. These advancements enable researchers to simulate real-world conditions with greater accuracy and efficiency, reducing the need for extensive testing periods and resources.
Types of Thermal Shock Chambers
There are two primary types of thermal shock chambers: air-to-air (ATA) and quenching chambers. The choice between these options depends on the specific requirements of the test and the properties of the material being evaluated.
Air-to-Air (ATA) Chambers:
Designed for testing materials resistance to temperature changes in a gaseous environment
Typically operate within a range of -100C to 1000C
Can be used for a wide range of applications, including automotive and aerospace research
Suitable for testing materials that are sensitive to moisture or require precise control over the gas composition
Quenching Chambers:
Used for testing materials resistance to rapid cooling and subsequent thermal shock
Usually operate within a range of -200C to 1000C
Commonly employed in industries such as oil and gas, where materials are exposed to extreme temperature fluctuations during extraction and transportation
Often feature advanced quenching systems that allow for precise control over cooling rates and temperatures
Principles and Operations
Thermal shock chambers work by rapidly changing the temperature of a specimen between two extreme values. This can be achieved using various techniques, including air flow, liquid quenching, or radiant heating. The chambers operation typically involves:
Temperature Control: A computer-controlled system regulates the temperature within the chamber to ensure precise control over the test conditions.
Heating and Cooling Cycles: The specimen is subjected to a rapid change in temperature between two extreme values, often with a dwell time at each temperature setting. This cycle can be repeated multiple times to simulate real-world scenarios.
Data Acquisition: Sensors monitor various parameters, including temperature, pressure, and humidity, to provide accurate data on the materials response to thermal shock.
Applications and Industries
Thermal shock chambers are used in a wide range of industries and applications, including:
1.
Aerospace:
Testing materials for use in aircraft engines, fuselage components, and other critical systems
Evaluating materials resistance to extreme temperature fluctuations during flight and re-entry
2. Automotive:
Assessing the durability of engine components, brake systems, and other materials exposed to high temperatures
Developing materials for electric vehicles that can withstand rapid charging and discharging cycles
3. Electronics:
Evaluating the thermal stability of semiconductors, integrated circuits, and other electronic components
Testing materials for use in harsh environments, such as aerospace or industrial applications
Safety Precautions
When working with thermal shock chambers, its essential to follow strict safety protocols to avoid injury or damage:
Personal Protective Equipment (PPE):
Operators should wear heat-resistant gloves, safety glasses, and a face shield when handling specimens or accessing the chamber.
Chamber Design:
Thermal shock chambers are designed with safety features such as interlocks, pressure relief valves, and emergency shutdown systems to prevent accidents.
Training and Certification:
Operators should undergo comprehensive training on the safe operation of thermal shock chambers and be certified by the manufacturer or a recognized authority.
Conclusion
Thermal shock chambers play a vital role in rapidly testing materials resistance to extreme temperature fluctuations. By understanding the principles, types, and applications of these devices, researchers can develop more accurate models for predicting material behavior under various conditions.
